EMC chambers – comprehensive solutions for electromagnetic compatibility testing

EMC chambers are a fundamental part of laboratory infrastructure used for electromagnetic compatibility (EMC) testing. We offer complete solutions, including chambers, measuring equipment, auxiliary systems, and shielding materials, designed for research laboratories, industrial applications, the automotive sector, and the defense industry.

Anechoic chambers

Reverberation chambers

Faraday cages

GTEM chambers

EMC chamber equipment

Audio and video systems

EMC absorbers

Ferrites

EMC shielding materials

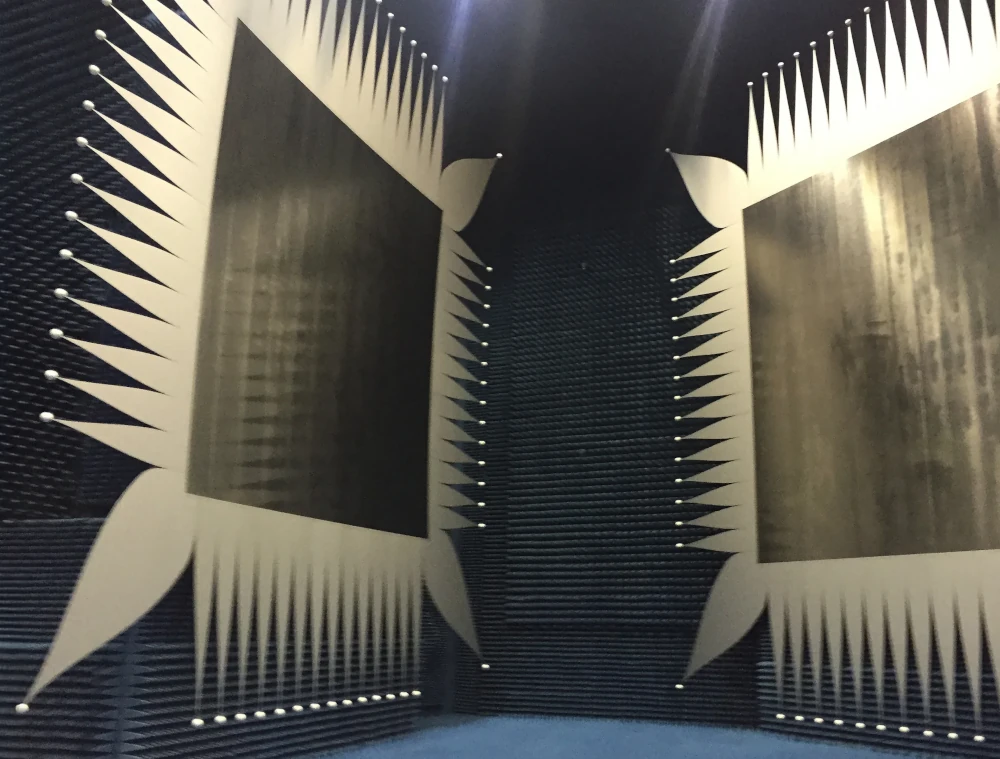

Anechoic chambers – controlled electromagnetic environment

The anechoic chambers allow for emission measurements from 30 MHz to 18 GHz according to CISPR 16-1-4, and immunity testing from 80 MHz to 6 GHz according to IEC/EN 61000-4-3, all performed in fully controlled electromagnetic conditions.

COMTEST anechoic chambers are distinguished by their high shielding effectiveness in the frequence range up to 40 GHz, compliant with EN 50147-1. The use of lightweight, durable, and non-dusting EPS absorbers enables the construction of smaller, lighter chambers without compromising functionality.

Available configurations:

SAC 3 m, 5 m, 10 m
MIL-STD, CISPR 25
FAR

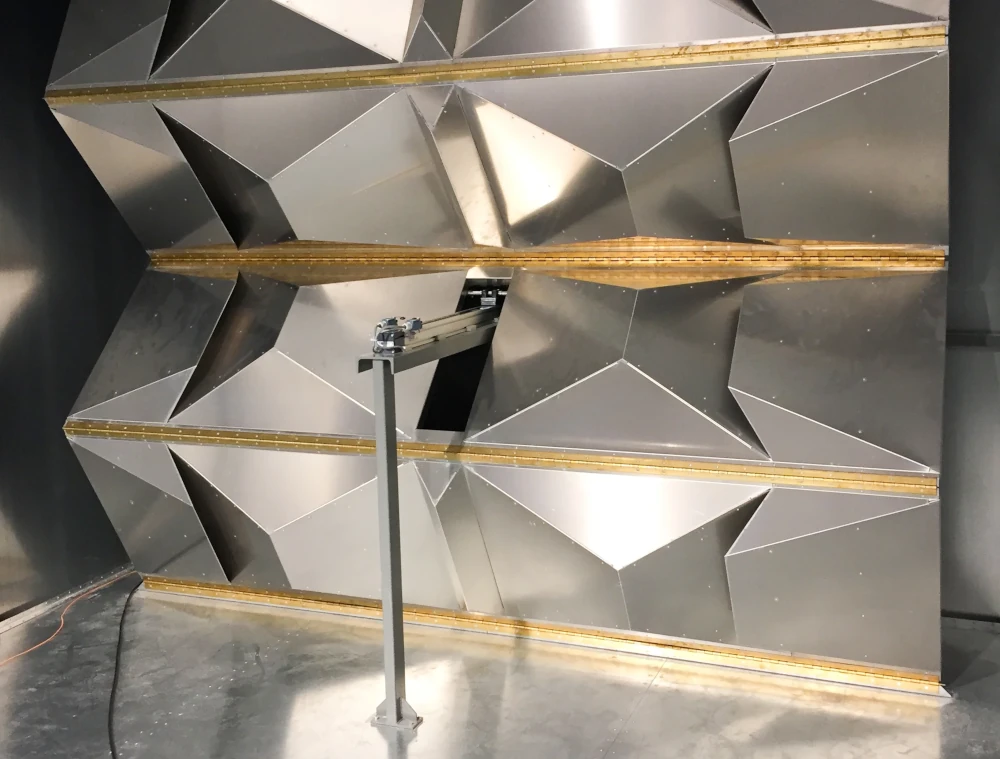

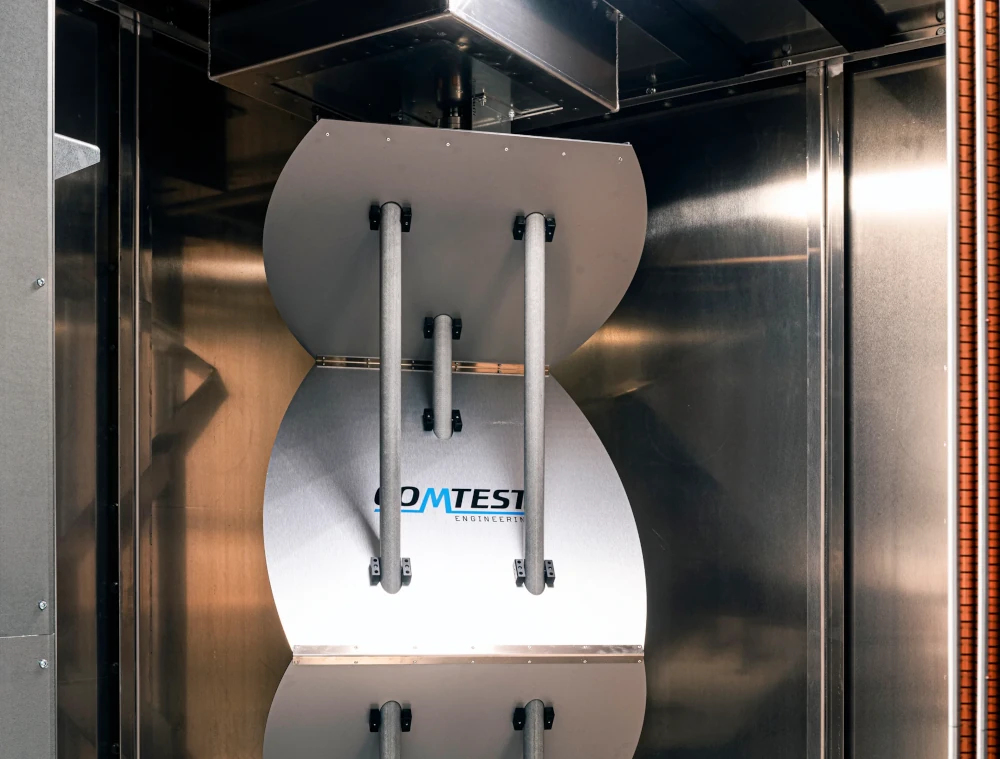

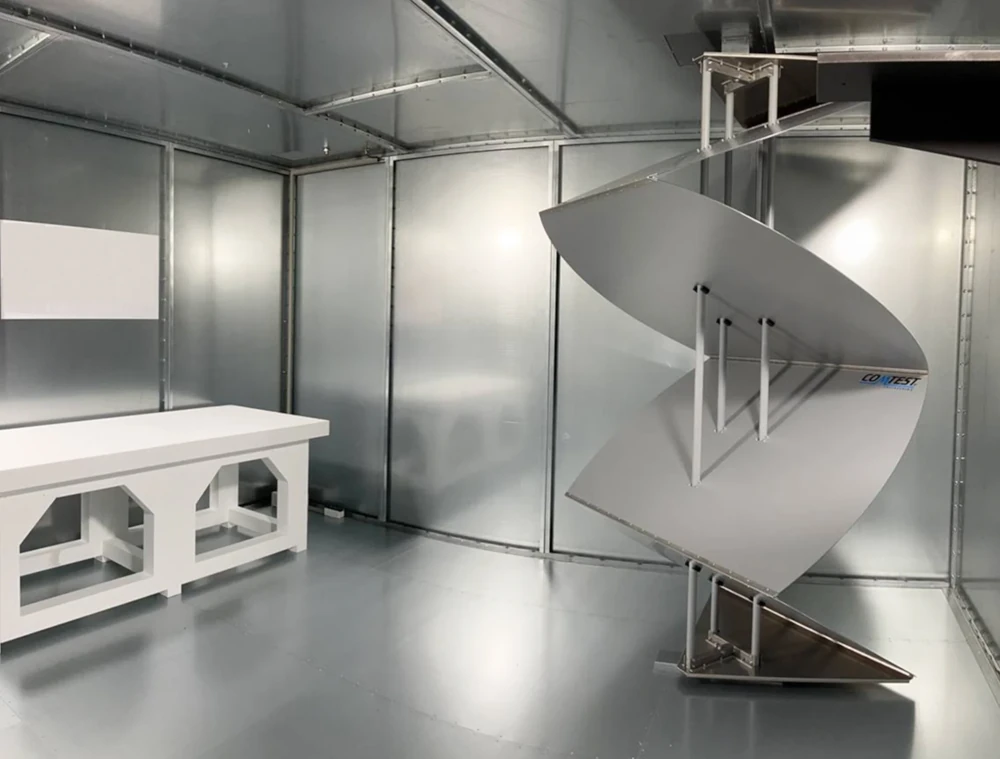

Reverberation chambers – professional EMC solutions

COMTEST reverberation chambers meet the requirements of IEC/EN 61000-4-21, EUROCAE/ED-14, MIL-STD-461, and automotive industry standards. They are available with standard stirrers or with an innovative mixing wall. All stirrers are compatible with software from leading manufacturers such as Nexio, Teseq, R&S, and Raditeq.

Typical EUT working volumes:

80 MHz–18 GHz EUT: 7x7x4 m(h)
100 MHz–18 GHz  EUT: 5x5x3.5 m(h)
200 MHz–18 GHz  EUT: 2.2×2.4×1.25 m(h)
400 MHz–18 GHz  EUT: 0.8×0.8×0.8 m(h)
1000 MHz–18 GHz  EUT: 0.5×0.5×0.5 m(h)

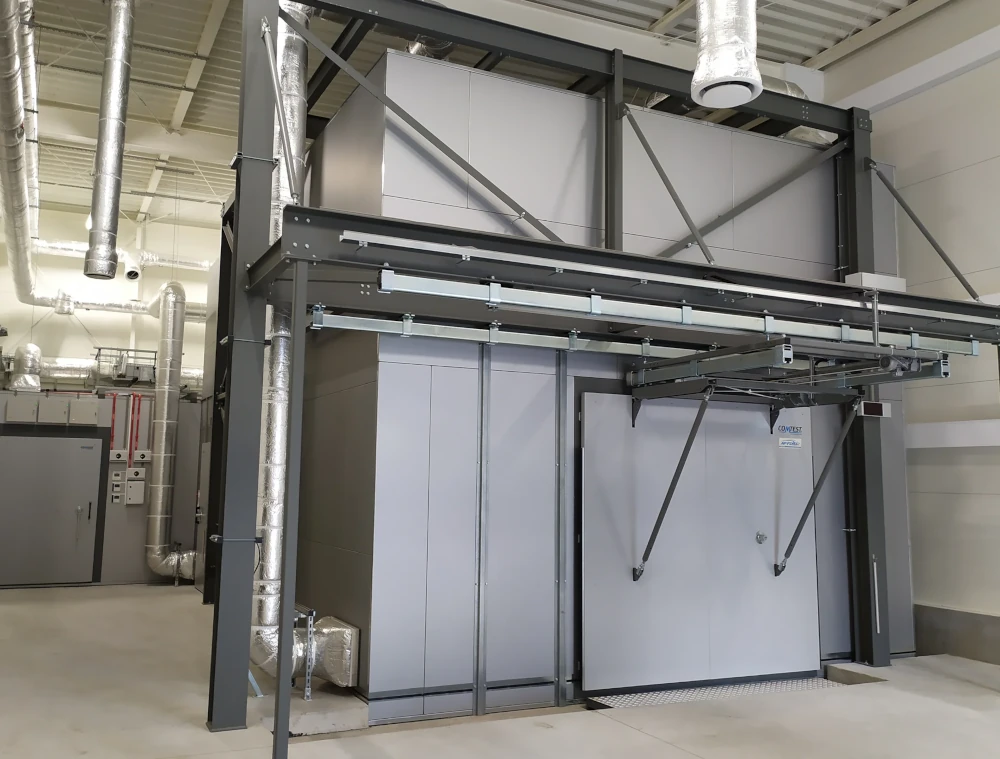

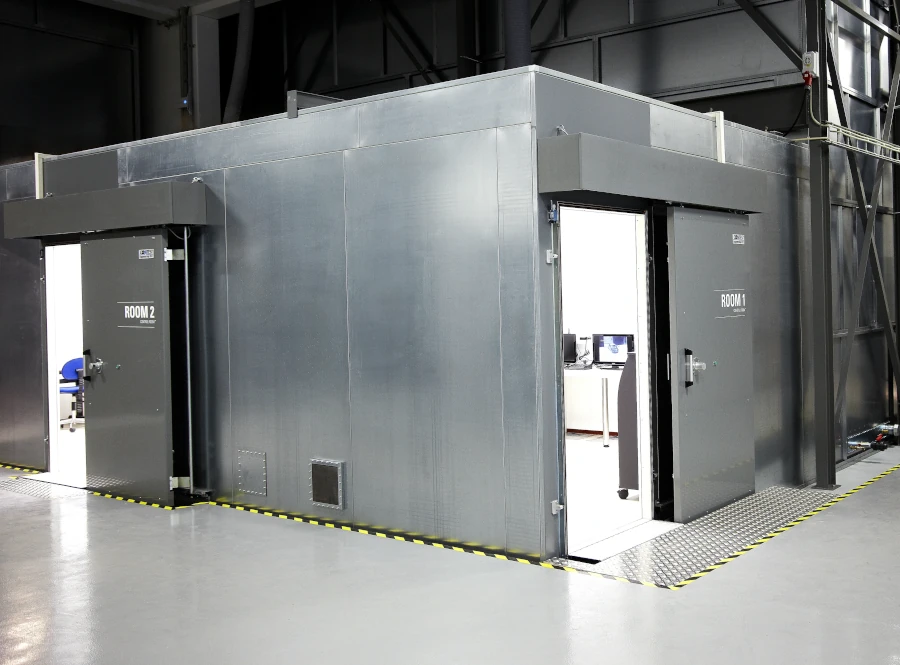

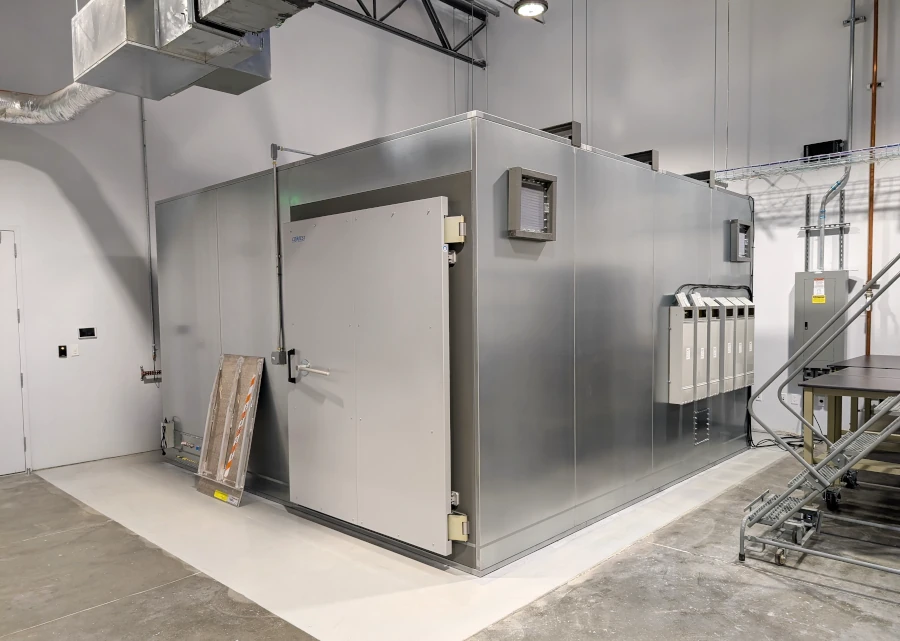

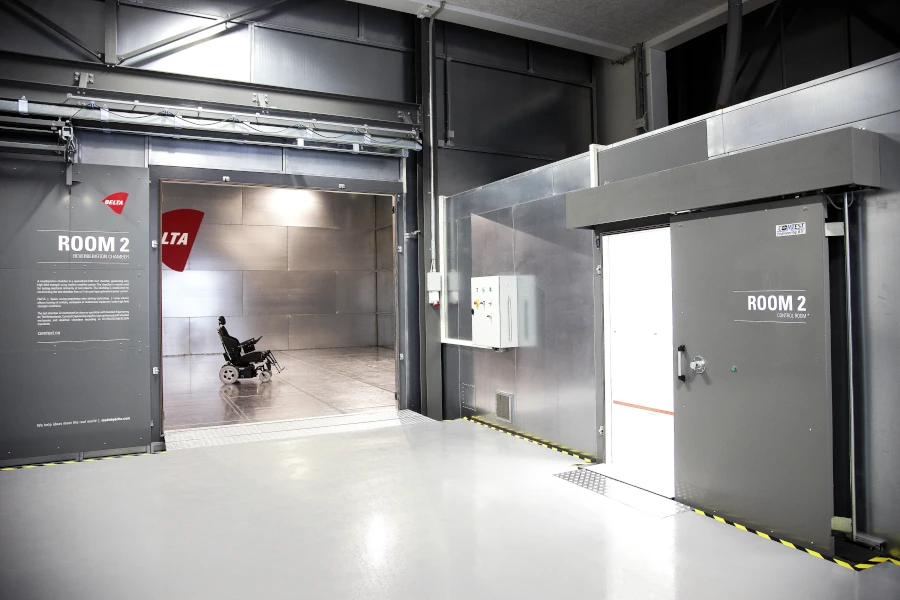

Faraday cages – maximum shielding performance

COMTEST Faraday cages provide exceptional shielding effectiveness in frequency range up to 40 GHz, in accordance with EN 50147-1. Thanks to their unique double-knife door construction, specialized gaskets, and advanced panel galvanization technology, they achieve the highest shielding parameters.

Available door types:

Sliding
Single-leaf and double-leaf
Manually, semi-automatically, or fully automatically operated.

Depending on their configuration, finishes, and the use of appropriate filters and media converters, these Faraday cages can function as:

EMC measurement rooms
Amplifire rooms
TEMPEST
Silent rooms
Server rooms.

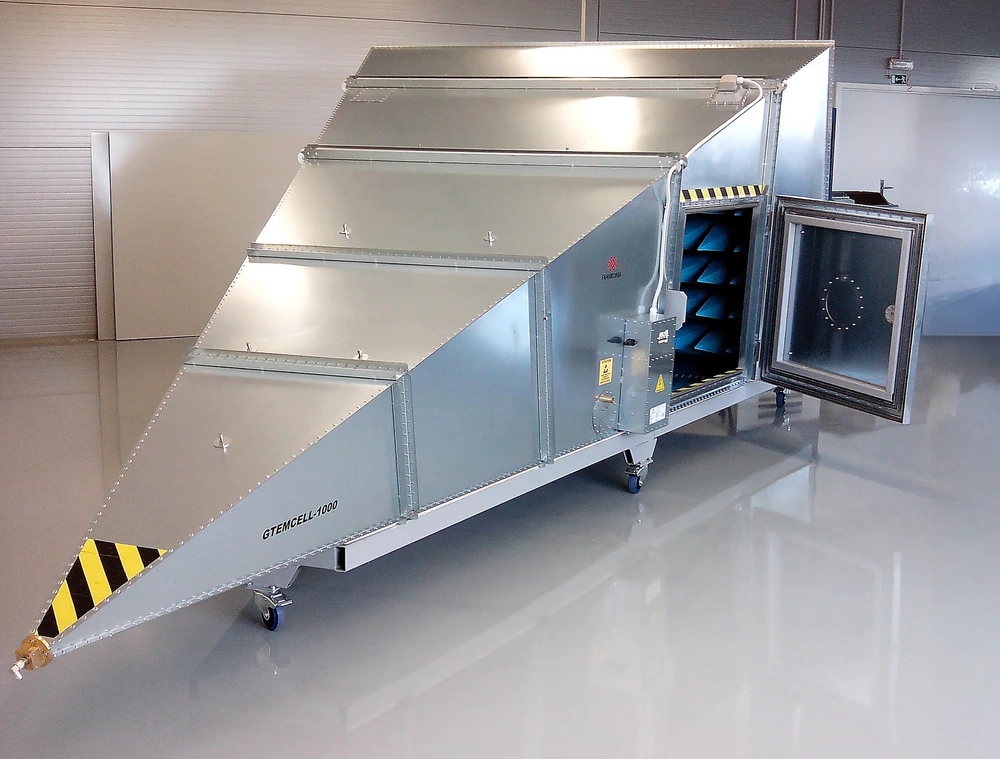

GTEM chambers – ideal for testing small EUTs

Raditeq GTEM chambers comply with the PN/EN 61000-4-20 standard. They allow for radiated emission and radiated immunity testing in the frequence range of 80 kHz to 6 GHz. Depending on the size of the EUT, chambers are available in different dimensions.

GTEM chambers can be equipped with:

Camera systems
Rotating mounts for EUT installation
Complete radiated immunity testing systems (generators, amplifiers, and probes).

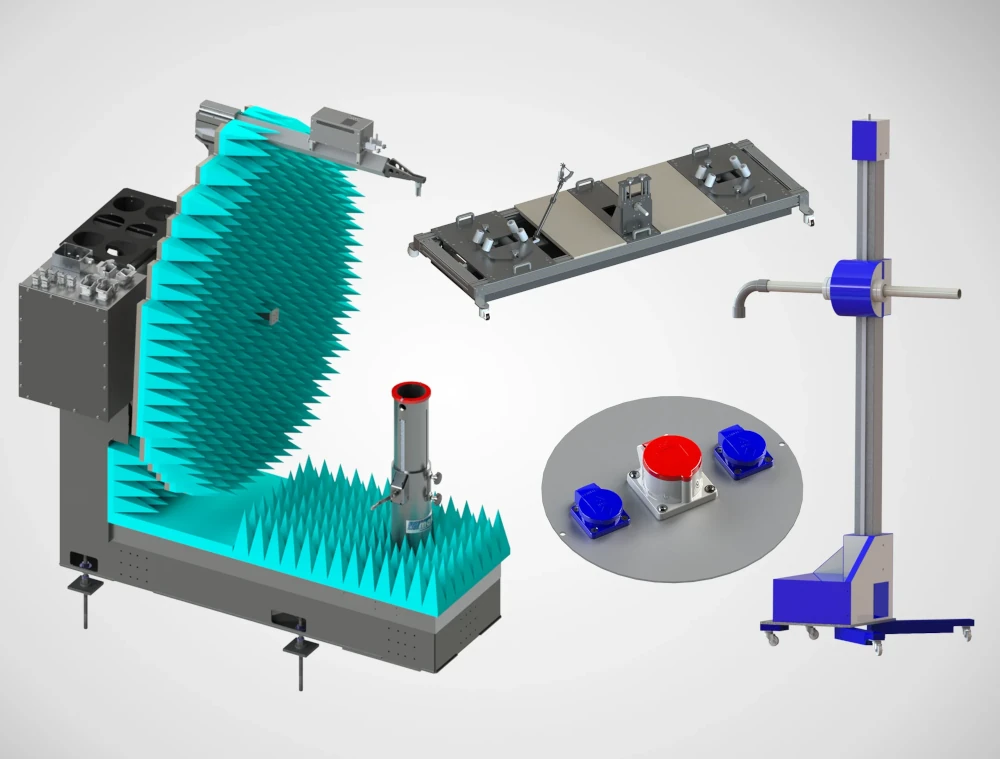

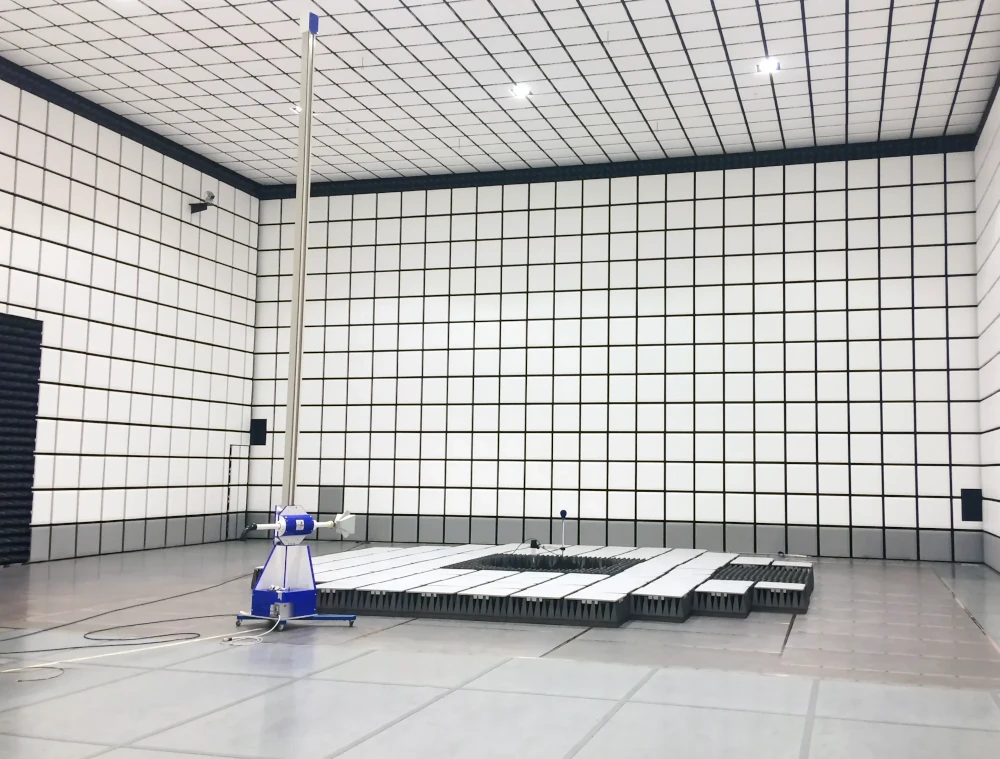

EMC chamber equipment – masts and turntables

MATURO provides professional equipment for EMC chambers, including:

Antenna masts (pneumatic or electric) for mounting any type of antenna
Turntables for small and large EUTs
Positioning systems
Linear positioners
Dynamometers for EMC/EMI measurements.

Every product can be customized to the specific requirements of the laboratory, ensuring maximum flexibility and precision for testing.

Wyposażenie komór EMC – maszty i stoły obrotowe

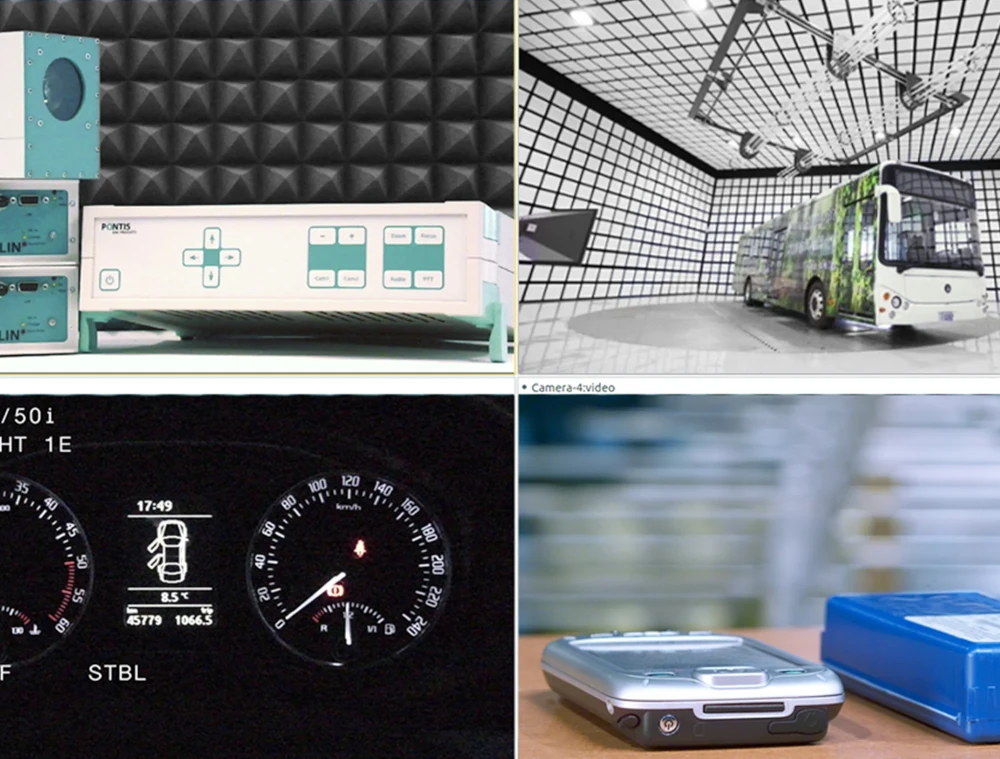

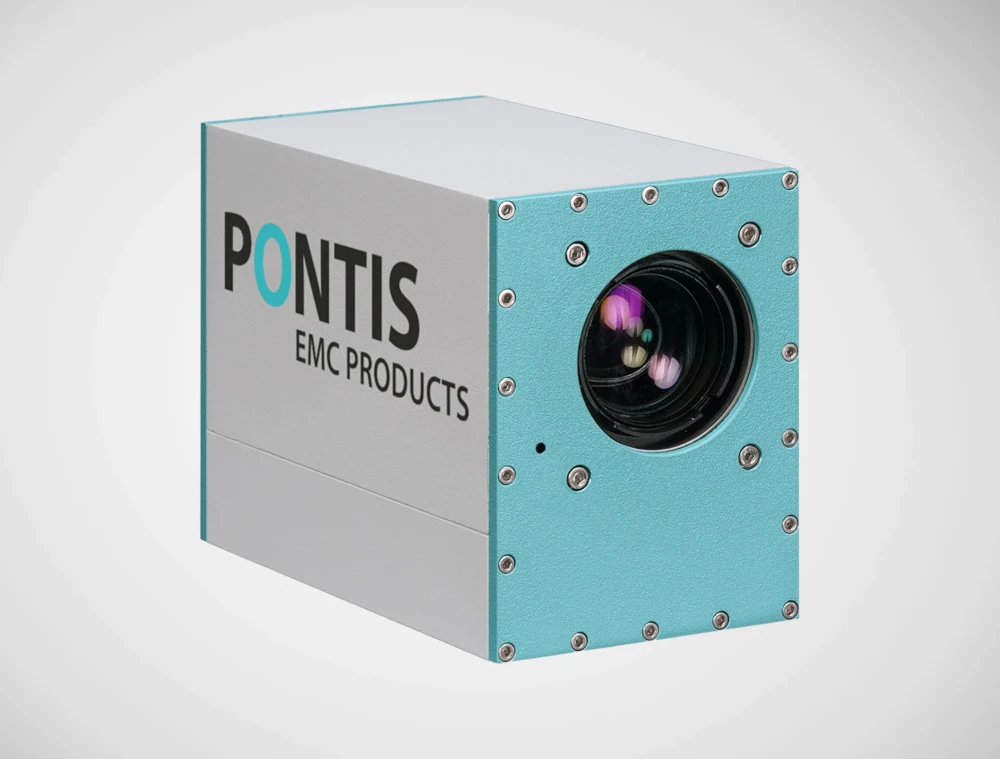

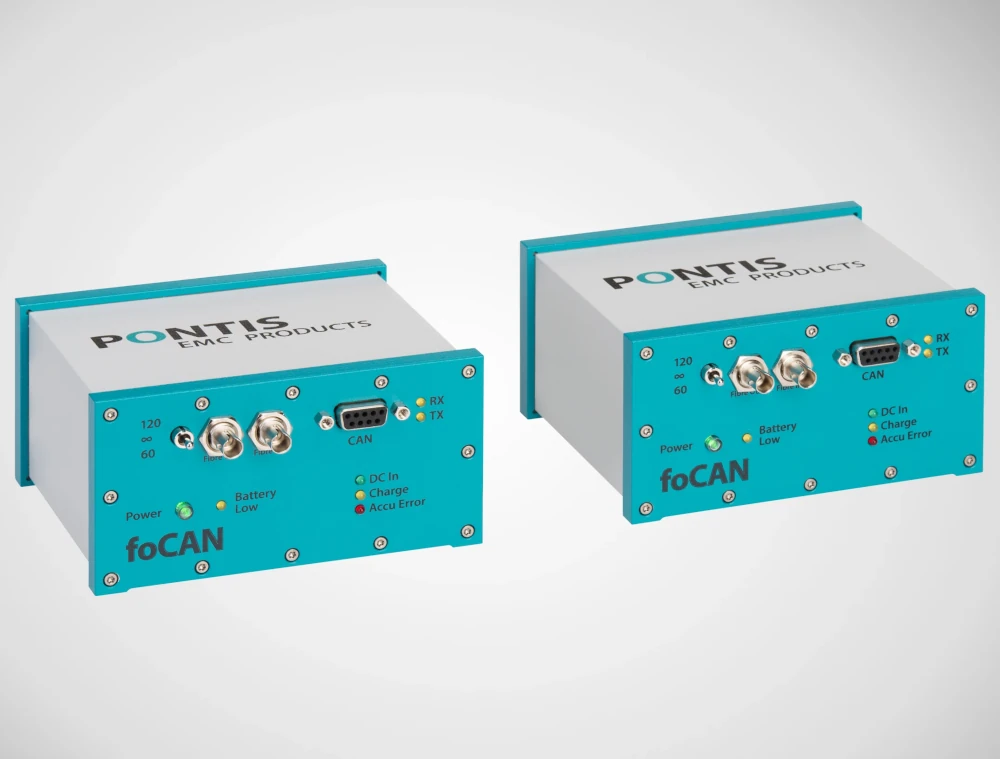

Audio and video systems – full EUT control

Pontis audio and video systems designed for anechoic chambers offer high electromagnetic field immunity up to 200 V/m. They allow monitoring of the EUT during testing.

The systems are equipped with controllers and hardened Pan/Tilt, enabling precise observation of any part of the EUT. Audio systems allow communication with personnel inside the chamber. The software provides recording of camera feeds for analysis and documentation.

Available solutions include:

Shielded cameras
Shielded products for specialized applications
Shielded audio equipment
Shielded media converters.

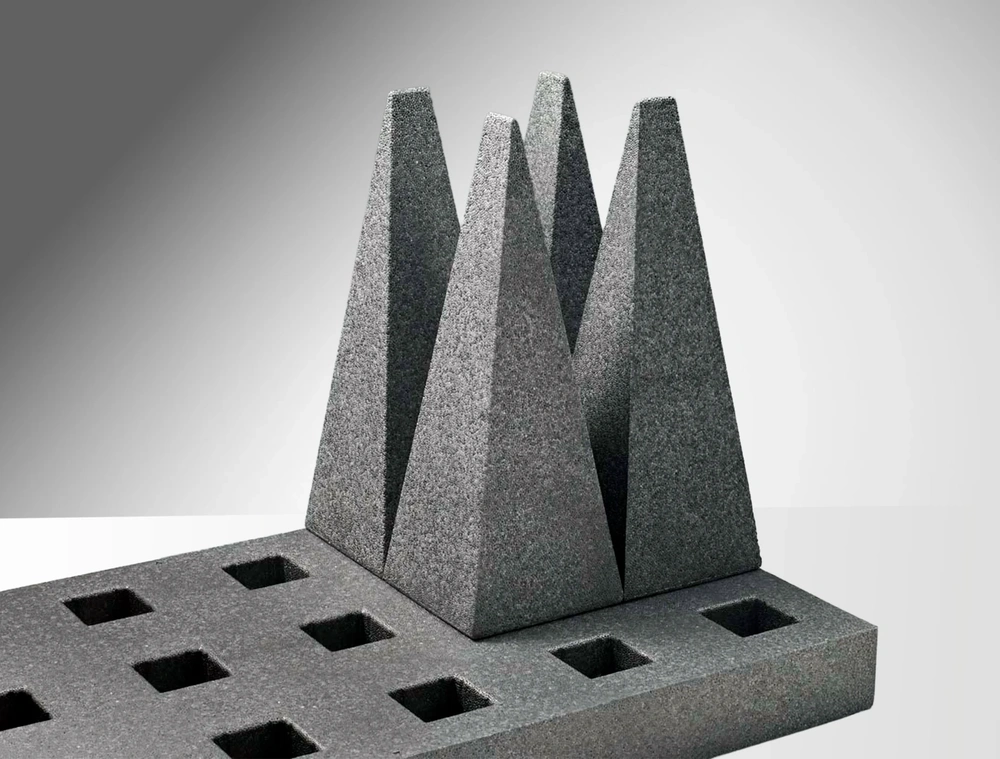

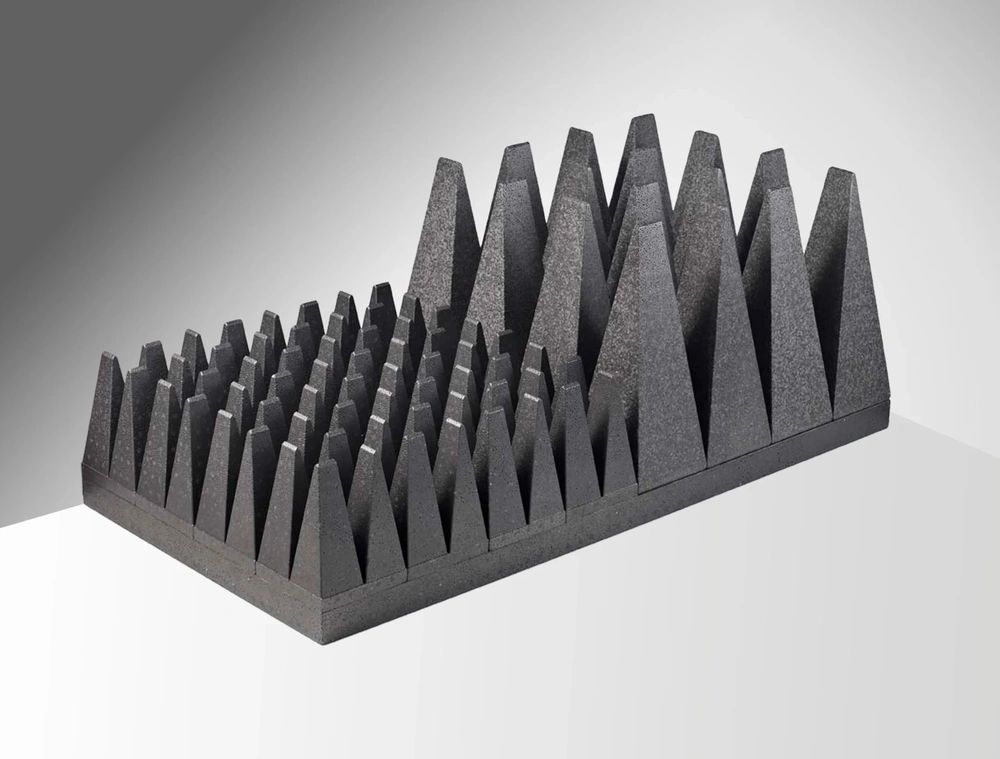

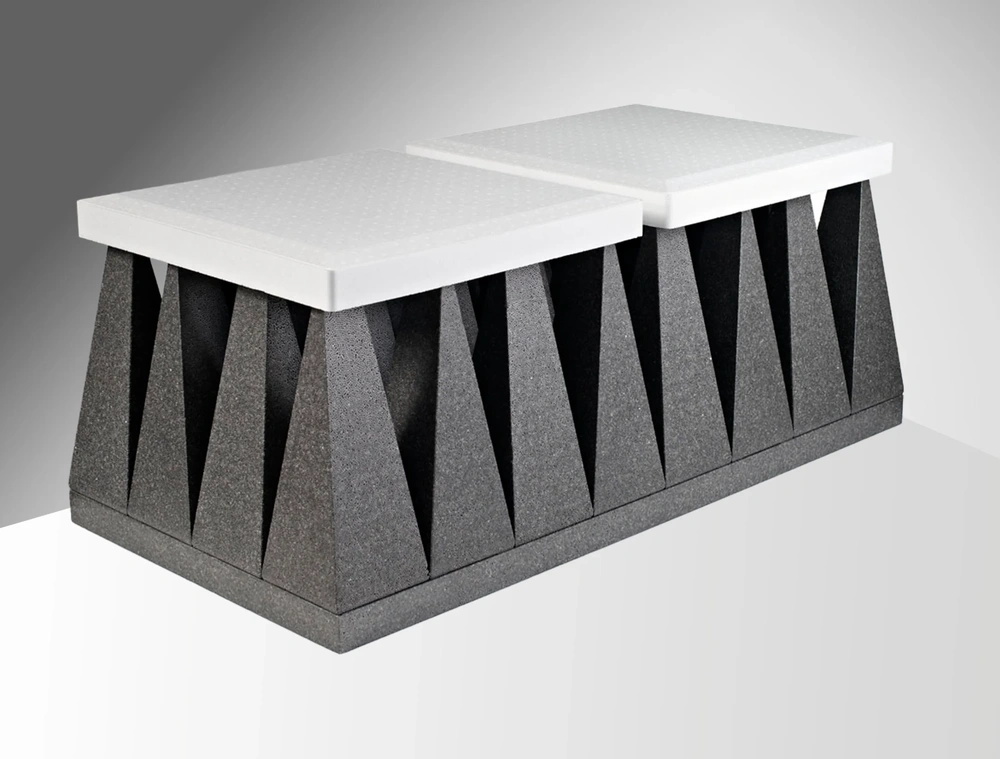

EMC absorbers – durability and effectiveness

DMAS polystyrene absorbers are highly rigid and resistant to changes in humidity. Superior, closed-cell technology has many advantages. Our absorbers do not leak any carbon particles. DMAS absorbers come with a 25 year warranty. DMAS products are durable, eco-friendly, and compliant with REACH and RoHS standards.

Types of absorbers:

Hybrid: HT25 (250 mm), HT45 (450 mm), HT65 (650 mm)
Microwave: MT13 (130 mm), MT25 (250 mm), MT45 (450 mm), MT65 (650 mm)
MIL-STD: MT50
Walkway absorbers.

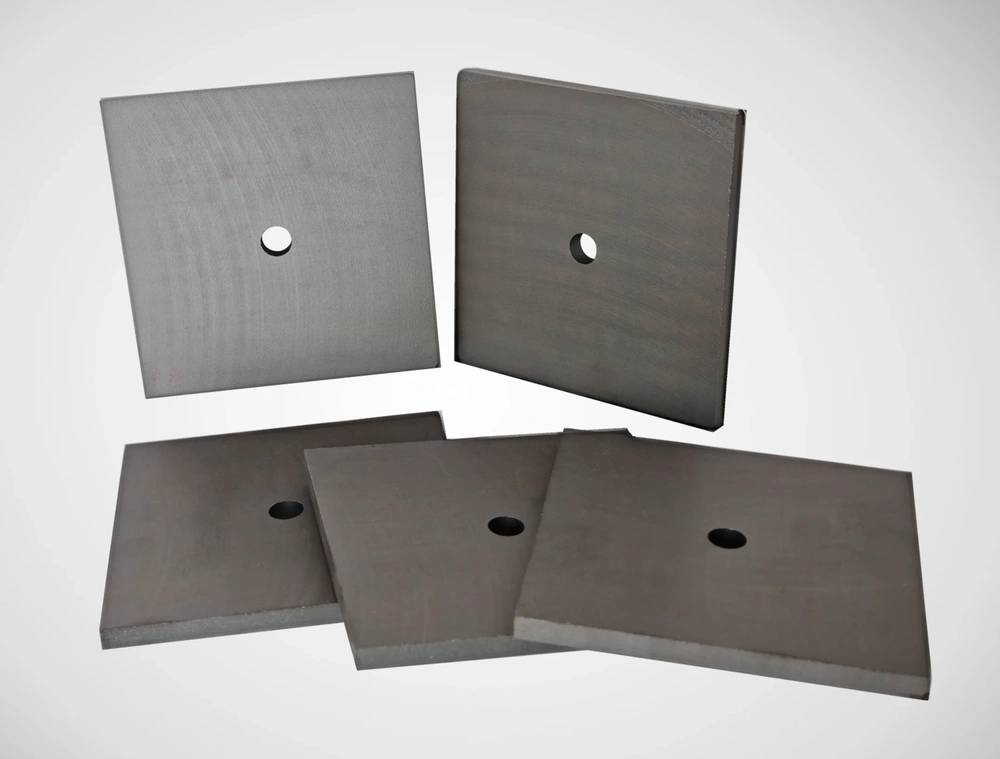

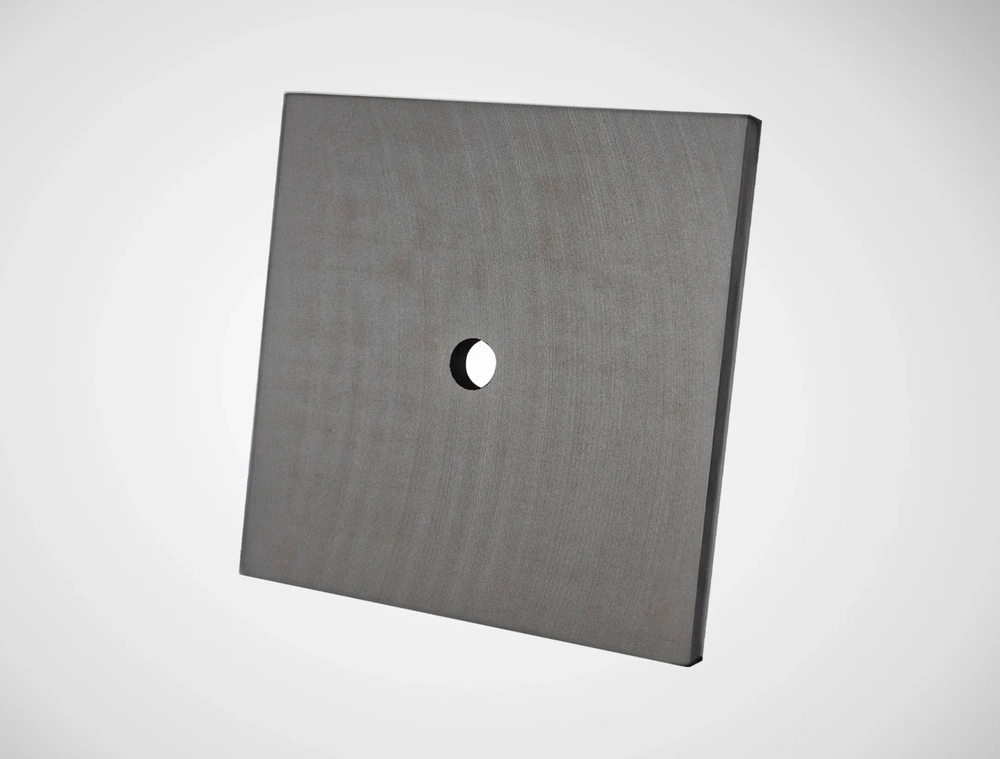

Ferrites – effective EMC absorption

Our ferrite absorbers show excellent absorbing performance, customer_faqally resistant qualities, high strength and good heat resistance. So they can be widely used as anechoic chamber for electro-magnetic compatibility (EMC) testing or block against electromagnetic interference (EMI).

Key features:

Wide range of applications: EMC chambers, MIL/TEMPEST rooms.
High electromagnetic absorption in the range of 30 MHz–1 GHz.
Easy installation: glued or secured with mounting pins.
Standard size: 100 × 100 × 6 mm – ideal for EMC projects.

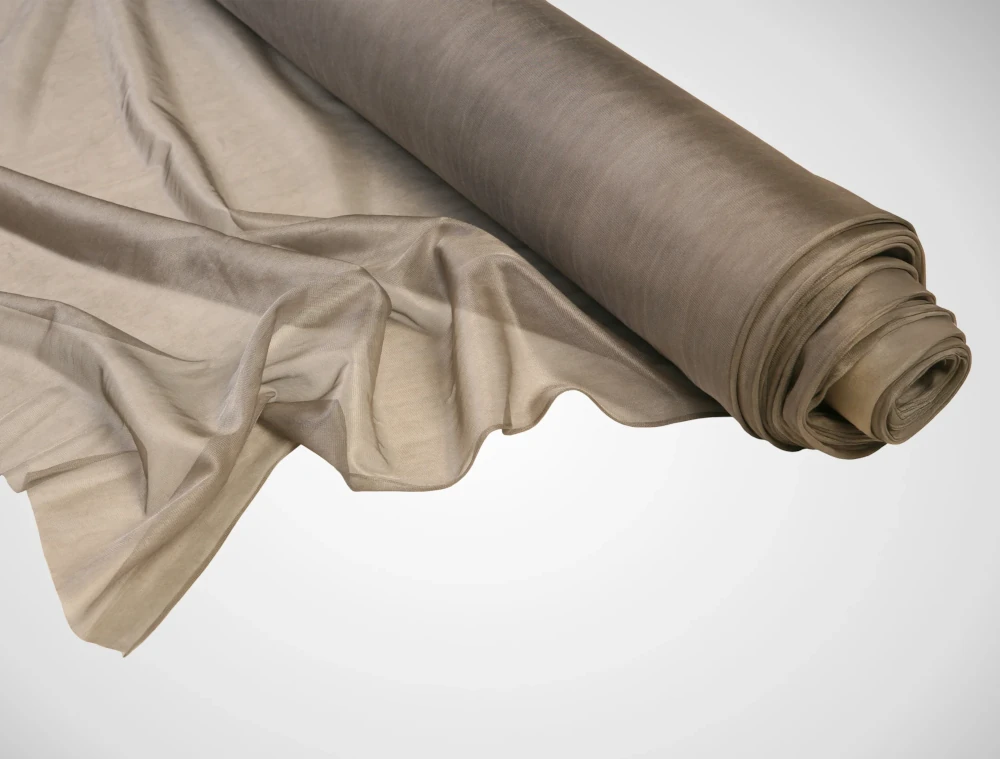

EMC shielding materials – flexible and durable

AP-FLYER provides high-performance EMC shielding materials with excellent effectiveness, particularly in the GHz frequency range.

Material benefits:

Durability: resistant to moisture, frost, and harsh weather conditions.
Comfort: lightweight and breathable.
Effectiveness: protection against high-frequency radiation and low-frequency fields.

Available products:

Shielding wallpapers.
Grounding elements.
Shielding foils for EMC chambers.

Join our satisfied customers

For detailed information on EMC chambers and their configurations, please contact us.
